HD-0408CI

*

HD0408CI is a high performance and cost-effective DVB-C modulator. It has 8 tuner inputs, after multiplexing, scrambling and modulating process, then it gives 4 DVB-C non-adjacent carriers output. To meet customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, it has 4 CAM/CI slots to descramble the programs from the 4 tuner inputs in the 2 CI-Tuner Modules.
HD0408CI can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and very adaptable to newly generation CATV broadcasting system.

*

DVB-S/S2/S2X tuner inputs (Supporting PLS/Multi-Stream)

*

Pluggable Demodulation Module (4*RF in/Loop out + 4*CAM Slots)

*

One CAM can decrypt multiple programs from the corresponding tuner input in the same one Tuner-CI module, and the 4 tuner inputs in the chassis are for FTA signals only

*

maximum 128 IP input (MPTS/SPTS) over UDP and RTP protocol

*

A TS playing and broadcasting via an USB Disk (FAT 32, USB 2.0)

*

Remote reboot in Web GUI

*

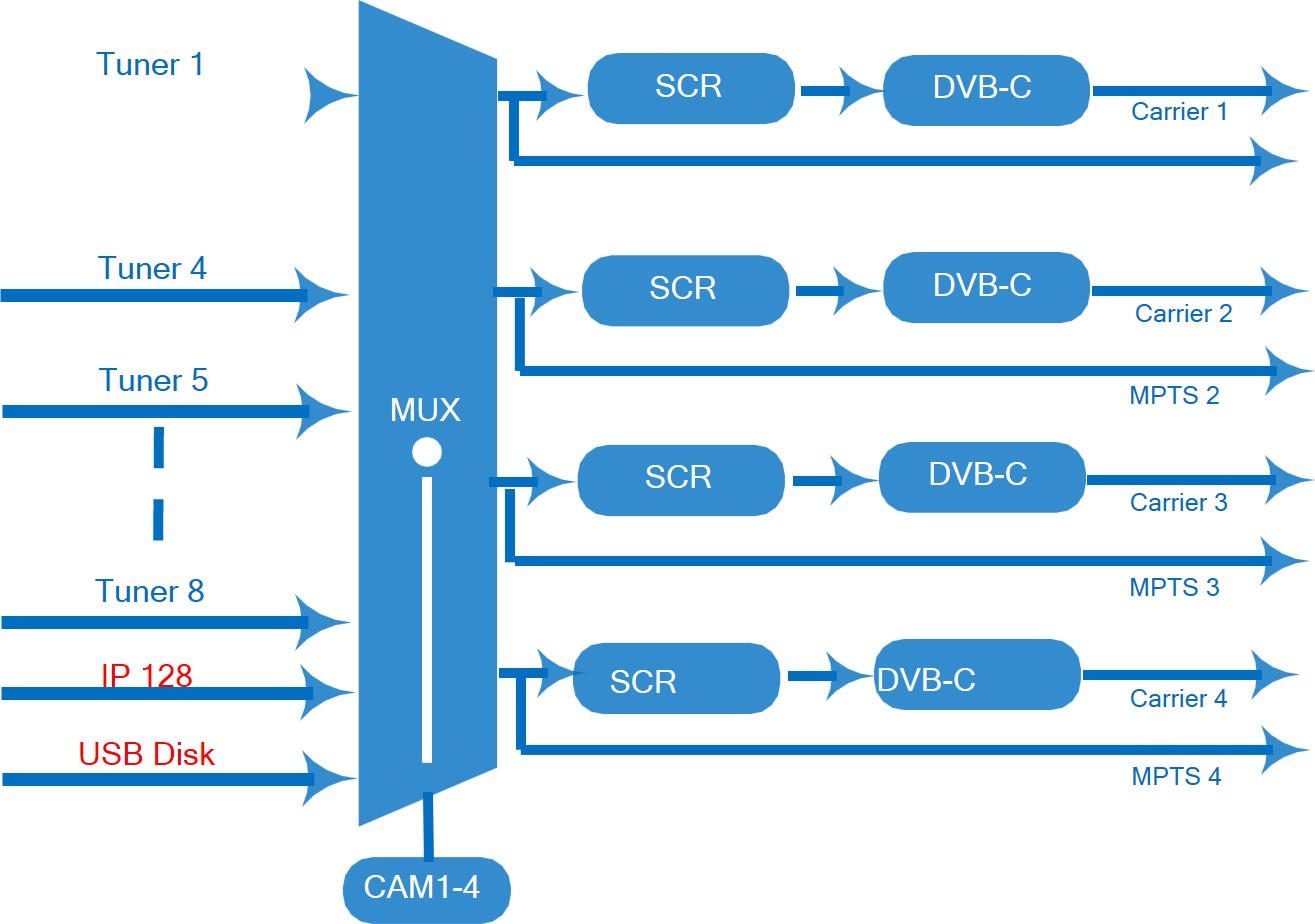

4 groups multiplexing + 4 groups scrambling + 4 groups DVB-C modulating

*

4 IP (MPTS) output over UDP and RTP protocol

*

Integrated demodulating and multiplexing functions

*

Support BISS descrambling

*

Support accurate PCR adjusting, PID Remapping, PSI/SI rebuilding and editing, A/V PID filtering

*

Web-based NMS management

*

Easy updating of mother board and tuner board in Web GUI
